Catalog Number
BD20NM
UPC
785928591860
List Price
$73.40

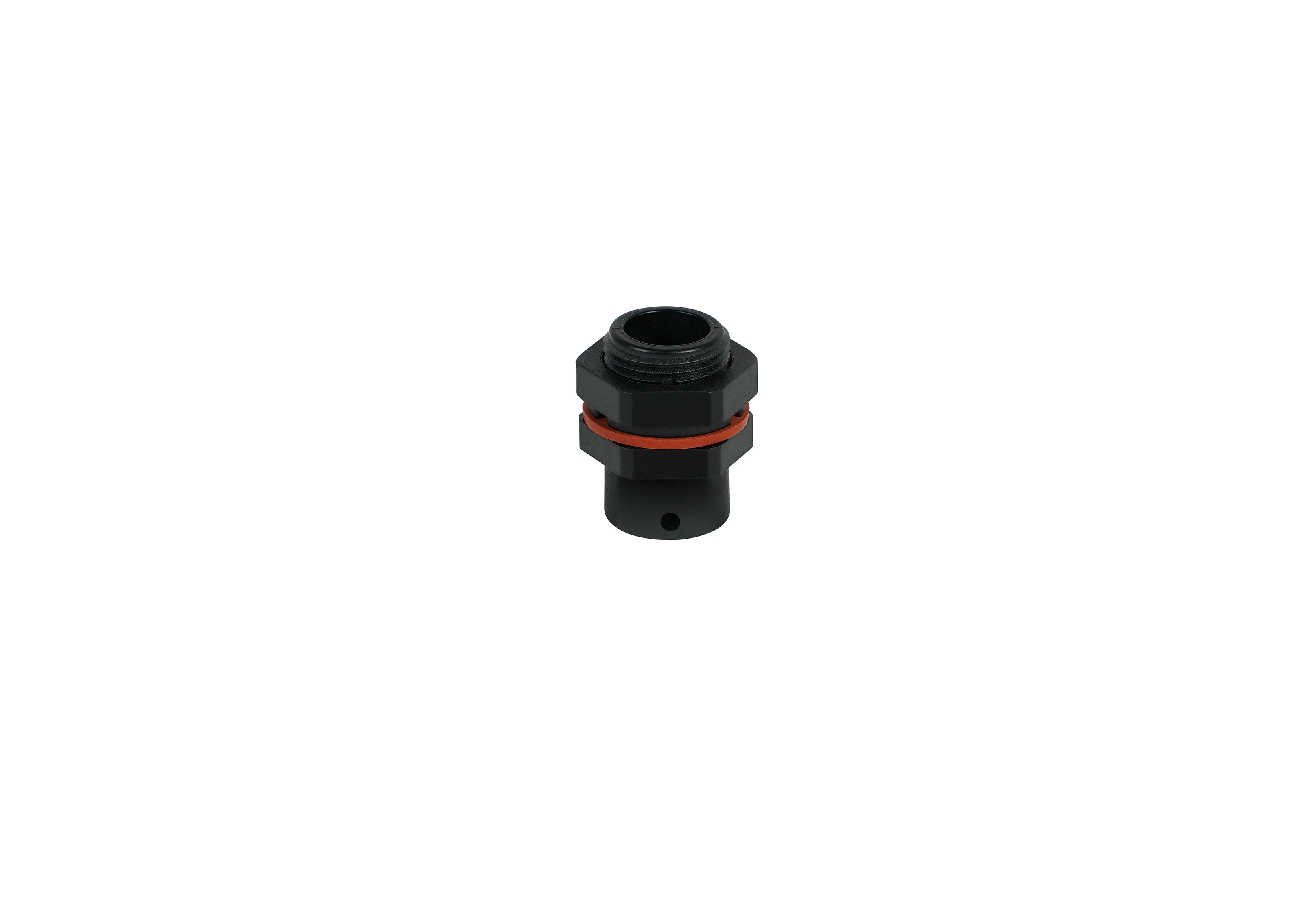

Nylon M20 Drain Plug Breather by Stahlin

CAD Drawings

Description

The Nylon M20 Drain Plug Breather is designed to mitigate pressure differentials in sealed enclosures caused by temperature variation, which can result in cyclic air exchange and the introduction of moisture-laden air. The device provides passive pressure equalization through controlled bidirectional airflow while allowing accumulated condensate to drain from the enclosure, reducing internal moisture buildup. Installed in a standard M20 threaded opening, typically at the lowest point of the enclosure or conduit system, it supports effective liquid removal and minimizes pooling. Constructed from non-metallic nylon for corrosion resistance, the fitting is suitable for use in wet and outdoor environments and contributes to maintaining enclosure integrity and long-term reliability.

Application
Suitable for heavy industrial; commercial; and OEM applications
Provide condensate drainage and low‑capacity breathing for industrial enclosures
Used indoors or outdoors
Used in highly corrosive areas
Features
Maintains enclosure integrity without compromising environmental protection
Threaded design, hex body, and included locknut for a secure, easy installation with only one hole to drill in the enclosure!
Utilizes a third party drain plug component marked: Ex II 2GD Ex eb IIC Gb Ex tb IIIC Db
Suitable for use as an accessory in increased safety (Ex eb) and protection by enclosure (Ex tb) applications in Zone 1 (gas) and Zone 21 (dust) when installed in accordance with the component manufacturer’s Ex documentation and installation instructions.

General Information

Color
Black
Material
Nylon
Air Flow
375 L/hr @ ΔP = 70 mbar (average laboratory value)
Water Flow
2.9 mL/min @ ΔP = 2.5 mbar (average laboratory value)
Installation Torque
18 in-lbs
Enclosure Wall Thickness (in.)
0.020–0.217
Thread Size
M20x1.5
Country of Origin
Turkey
Standards
NEMA
4X
Temperature Range °F
-76°F to +185°F
Temperature Range °C
-60°C to +85°C

Technical Information

Product Category
Accessories
Product Family
Environmental Management
