Catalog Number
PC100806
UPC
785928564703
List Price
$196.98
Description

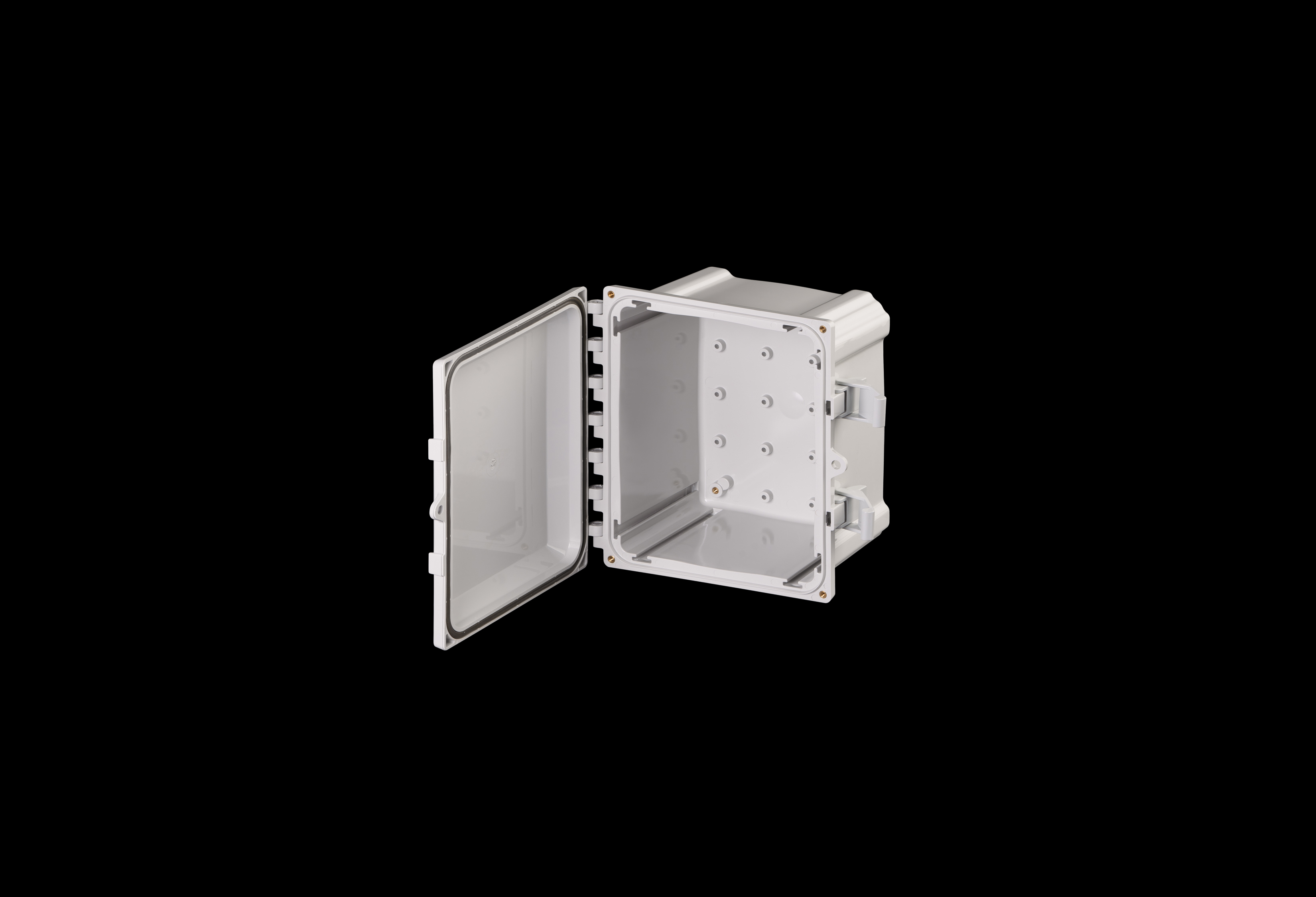

10H x 8W x 6D Inches PolyStar Polycarbonate Enclosure with an Opaque Cover Configuration (Hinged, Latched, Padlockable) are desined for outdoor and indoor applications. They carry and "F1" Rating per UL 746C, passing all tests for UV exposure and water immersion. PolyStar enclosures are self-extinguishing, non-halogenated and non-flame propagating.
Application
Suitable for heavy industrial; commercial; and OEM applications
Used to house electrical and electronic controls; instruments; and components
Used indoors or outdoors
Used in highly corrosive areas
Provides protection against rain; sleet; snow; splashing water; hose-directed water; submersion; sun/UV and flame protection.
Features
Latches and hinges do not penetrate enclosure
Easy to remove lid
High performance inserts
Integrated padlock hasp
Flush-fit side mount swing panel and DIN rail system
Molded in bosses
Multi-directional mounting feet
Single SKU with multiple cover attachment options
Back Panels Available for all sizes
General Information
Color
Gray
Cover Type
Opaque
Mounting Type
Wall Mount
Material
Polycarbonate
Back Panel Screw Size
#10-32 x 3/8
Back Panel Recommended Torque
16-20 in-lbs
Back Panel Screw Material
Zinc Plated
Cover Screw Size
#10-32 x 5/8
Cover Screw Recommended Torque
20-24 in-lbs
Cover Screw Material
304 SS
Mounting Foot Screw Size
1/4-20 x 1/2
Mounting Foot Screw Recommended Torque
10-14 in-lbs
Installation Mounting Torque
25-30 in-lbs Max
Metal Inserts
Brass
Hinge Material
Integral Polycarbonate
Latch Material
Polycarbonate
Gasket Material
Poured In Place (PIP) Polyurethane Seamless
Country of Origin
USA
Dimensions
Height (in)
10.0
Width (in)
8.0
Depth (in)
6.0
Height (mm)
254.0
Width (mm)
203.2
Depth (mm)
152.4
Usable Depth (in)
6.5
Usable Depth (mm)
166.0
Standards
NEMA 10250; UL 50; UL 50e; UL508A
cULus Listed File #E319779
CSA Std. C22.2
cULus Listed File #E319779
Type
1; 3R; 4; 4X; 6P; 12
IEC 60529; UL Listed #E362920
IP66; IP68
Temperature Range °F
-40°F to +248°F
Temperature Range °C
-40°C to +120°C
Flammability Rating
UL94-5VA
Outdoor Exposure UL746c
(f1) Rated
CE
Certified
Technical Information
Product Category
Enclosures
Product Family
PolyStar Series
