Catalog Number
HMICVR2014
UPC
785928583117
List Price
$586.67
Description

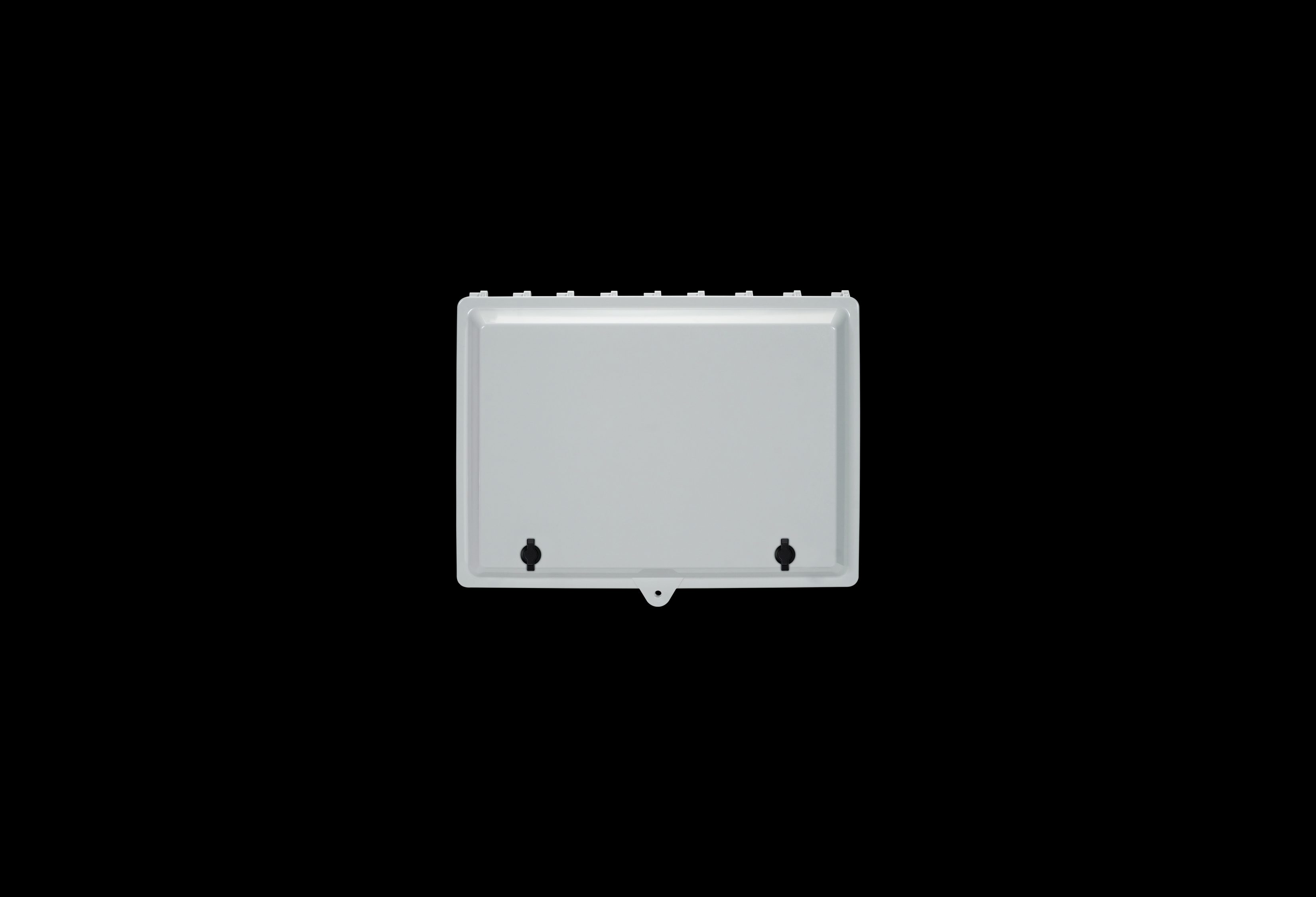

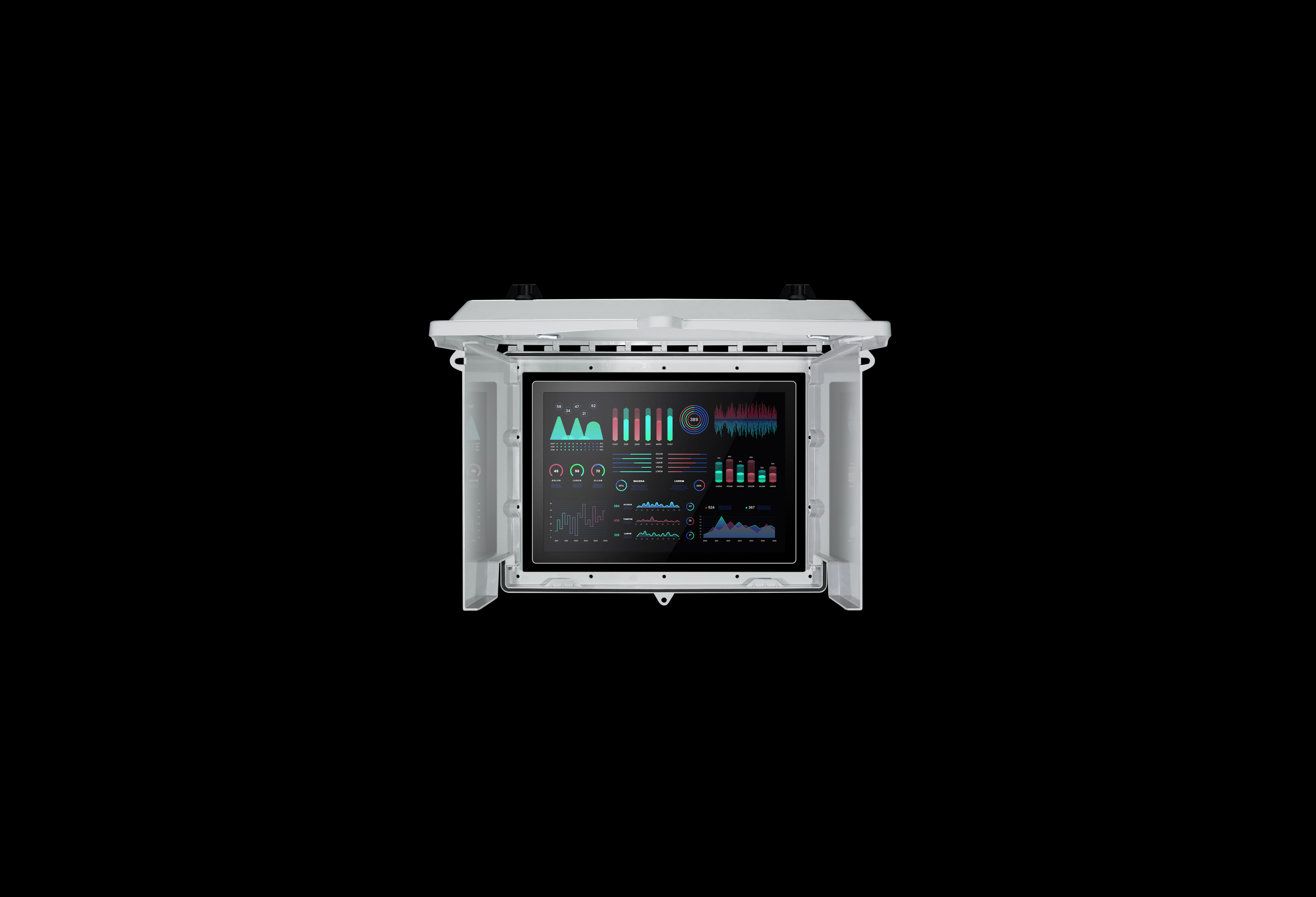

20W in x 14H Inch SolarShield HMI Opaque Cover for HMI Devices offer the most innovative, durable non-metallic HMI Covers for use with all enclosure material types. They are ideal for protecting HMI screens from UV and harsh environmental conditions. It has an easy to use, hinged design includes supporting inner doors for hands-free use and better visibility of the HMI screen in the sun. SolarShield HMI covers protect HMI screens and electrical equipment from corrosion and damage due to UV, water, oils, dirt, and sand and greatly reduce equipment replacement cost. Impact resistant polycarbonate construction provides long dependable life in harsh conditions. Fits most standard Size 15 and smaller HMI screens.
Application
Provide superior protection of Human Machine Interface (HMI) screens from the sun, wind-blown dust, and other environmental conditions
Extremely tough and durable, HMI Covers are used in both outdoor and indoor applications
Non-hazardous industrial and commercial applications
Oil and gas, Equipment manufacturing, Industrial machines, Water/Wastewater, marine, food and beverage applications
Features
Patented design with non-metallic, hinged inner doors to shield screen from the sun and allow for hands-free use
NEMA 4/4X rating
Patented with non-metallic, hinged inner doors to shield screen from the sun and allow for hands-free use
Universal covers can be used with either non-metallic or metallic enclosures
Lightweight, high-Impact rated, UV resistant polycarbonate material construction
Stainless steel hardware kit Included
Padlock-able for increased security
Simple and easy installation with the use of common tools
Available as standalone SKUs or assembled to our enclosures with added HMI cutouts through our value-add ModRight program.
Color: Pantone 428C
General Information
Color
Gray
Cover Type
Opaque
Mounting Type
Box Mount
Material
Polycarbonate
Cover Screw Size
#10-32 x 5/8
Cover Screw Recommended Torque
20-24 in-lbs
Cover Screw Material
304 SS
Installation Mounting Torque
20-24 in-lbs Max
Hinge Material
Integral Polycarbonate
Latch Material
Nylon
Gasket Material
Poured In Place (PIP) Polyurethane Seamless
Country of Origin
India
Dimensions
Height (in)
18.0
Width (in)
23.1
Depth (in)
2.6
Height (mm)
457.0
Width (mm)
586.0
Depth (mm)
66.0
Inside Height (in)
14.3
Inside Width (in)
19.9
Inside Depth (in)
2.2
Standards
UL508A
cULus Listed File #E540056
Type
4; 4X
Temperature Range °F
-40°F to +248°F
Temperature Range °C
-40°C to +120°C
Flammability Rating
UL94-5VA
Outdoor Exposure UL746c
(f1) Rated
Technical Information
Product Category
Accessories
Product Family
HMI Covers
